Normal Creasing Industrial Die Cutting Machine Four Safety Protection System

Dongguang Xinglong Packaging Machinery Co., Ltd.
Contact Now

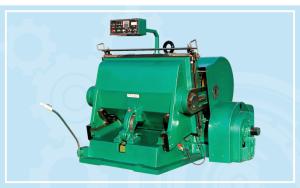

Normal Creasing Industrial Die Cutting Machine Four Safety Protection System

  • 1
  • 2
  • 3

Brand Name : Xinglong

Model Number : Ml1100

Certification : CE

Place of Origin : Hebei,China

MOQ : 1set

Price : USD 7050 /set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300sets per year

Delivery Time : 25days

Packaging Details : wooden box ,plastic film

Power : 8kw

Voltage : 3pH,380/440V

Type : Manual

Weight : 3500kg

Contact Now

Normal Die-Cutting and Creasing Machine

Use and Characteristics:

1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.

2. Four functions: single cutting, continuous cutting, working in delay time and counting.

3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.

4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.

Main Technology Parameters:

Model Max effective area Working speed WACRULELENGTH Motor power Weight
PYQ203D 930×670mm 23±2(strokes/min) <25m 3.0kw 3000kg
ML1100 1100×800mm 20±2(strokes/min) <32m 4.0kw 4500kg
ML1200 1200×830mm 20±2(strokes/min) <35m 4.0kw 4800kg
ML1300 1300×920mm 18±2(strokes/min) <40m 5.5kw 6000kg
ML1400 1400×1000mm 17±2(strokes/min) <45m 5.5kw 6800kg
ML1500 1500×1050mm 16±2(strokes/min) <45m 5.5kw 7500kg
ML1600 1600×1250mm 16±2(strokes/min) <50m 11kw 11000kg
ML1800 1800×1300mm 16±2(strokes/min) <62m 15kw 13500kg
Normal Creasing Industrial Die Cutting Machine Four Safety Protection System
Normal Creasing Industrial Die Cutting Machine Four Safety Protection System
Normal Creasing Industrial Die Cutting Machine Four Safety Protection System
Normal Creasing Industrial Die Cutting Machine Four Safety Protection System

FAQ:

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

(2) Skillful workers care every details in handling the producing and packing process.

(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q:4. What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q:5. How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

(2) To solve the problems with videos/pictures.

(3) One year warranty for spare parts change.
